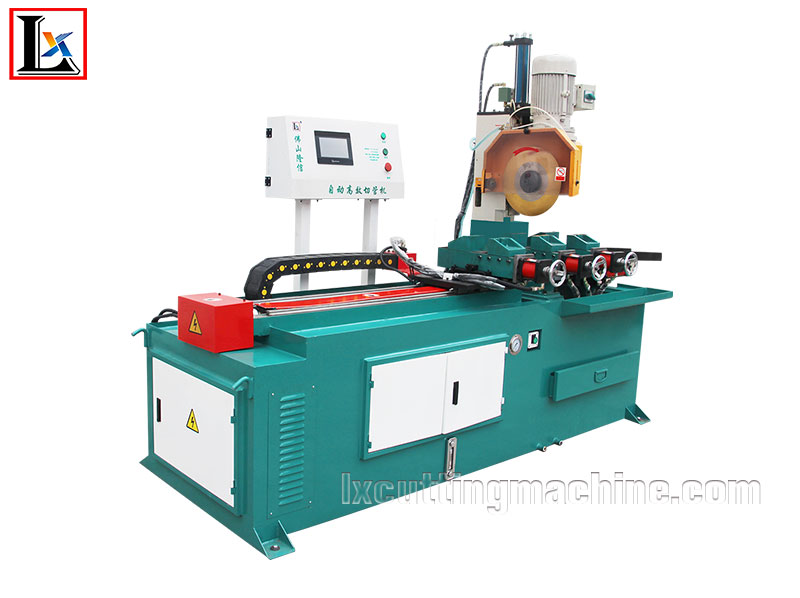

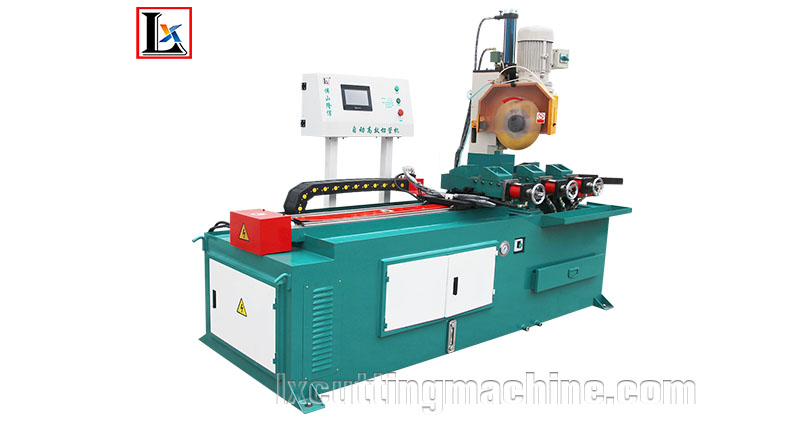

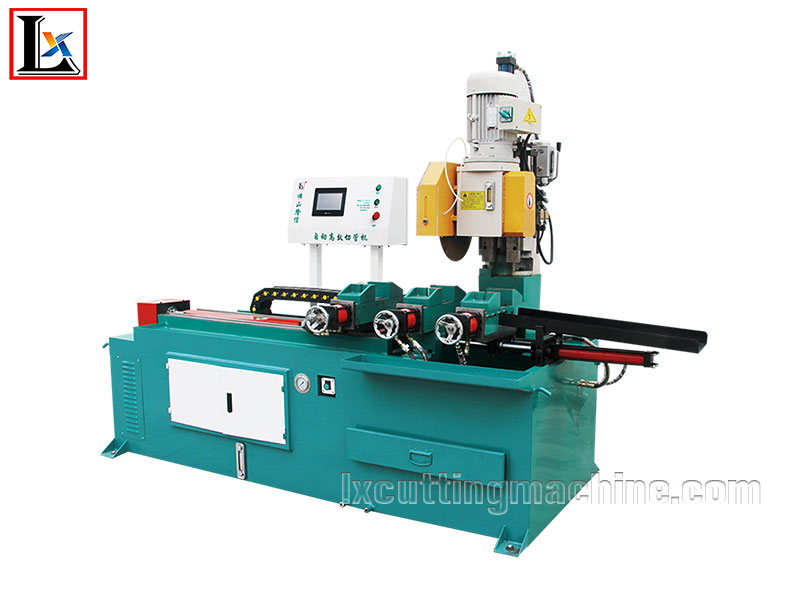

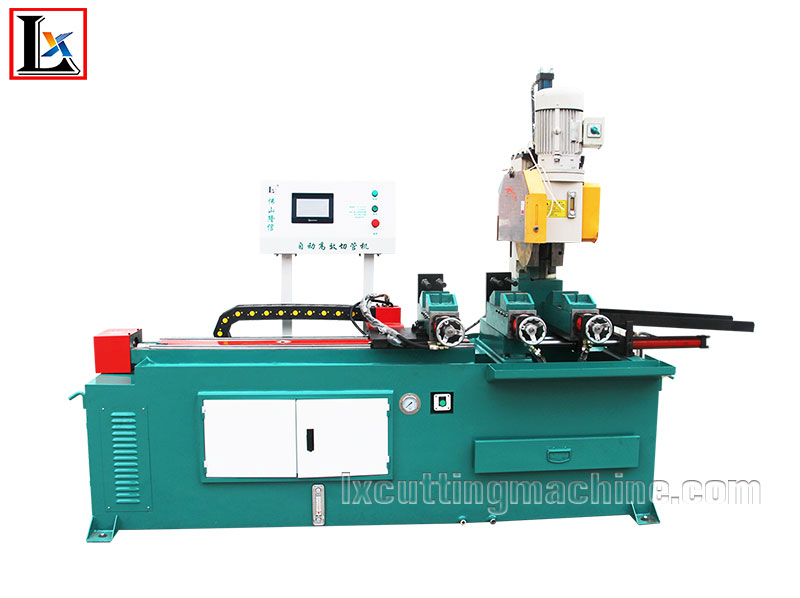

LX400CNC Metal sawing Machine

  • Açıklama
  • Parametre
  • Örnek
  • Video
  • FAQ



Main advantage:

.Servo automatic feeding; Bundle cutting

.5 sets number of different cutting length

.Material piece end pull out function

.PLC touch screen control

. Electronic cutting counter

.No burr, high accuracy

.Right & left clamp

. Vertical slide way up-and-down sawing

ModelLX-400CNC-H
Main Drive Motor(KM)YD100L-4/2 380v 2.4/3.7KW 50HZ(Frequency)
Biade Speeds(RPM)25/50(Stainless steel)   52/104(Standard)
Saw Blade SizeDiameter(mm)HSSφ275-φ400    φ450(Special)
Pin Holes(mm)2×φ11×PCD63
Max.Clamping Capacity (mm)180(Customizable)
Oil Pressure SystemOil pressure(kg/cm2)25-35
Hyd.Oil storage capacity(L)100
Net Weight(KG)800
Machine Dimensions(L×W×H)(mm)3000*1100*2100
