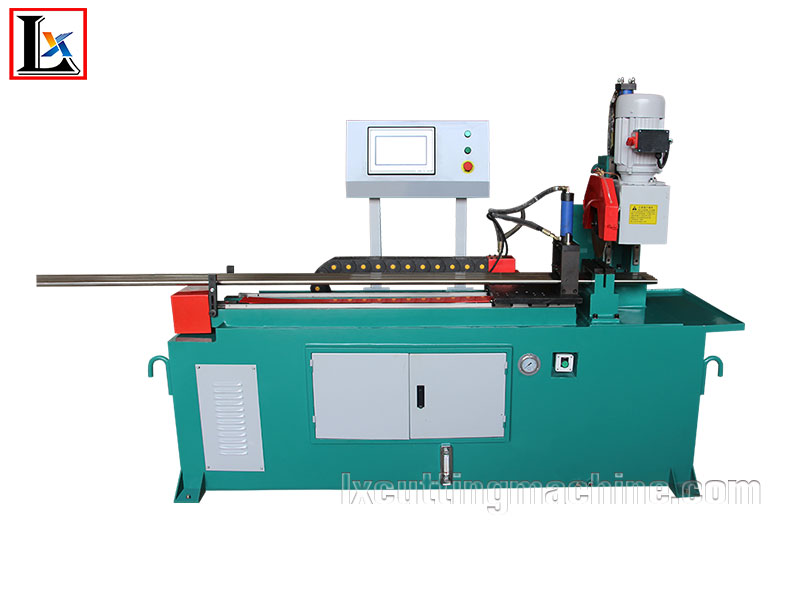

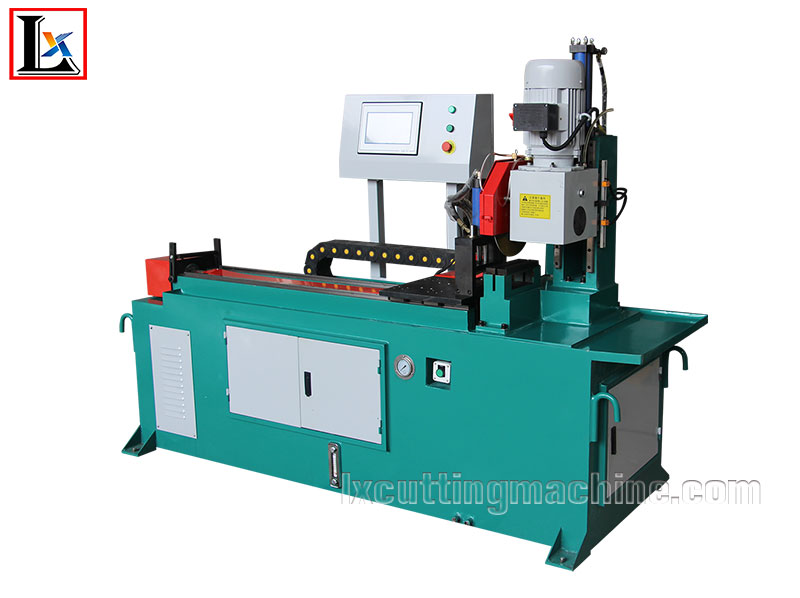

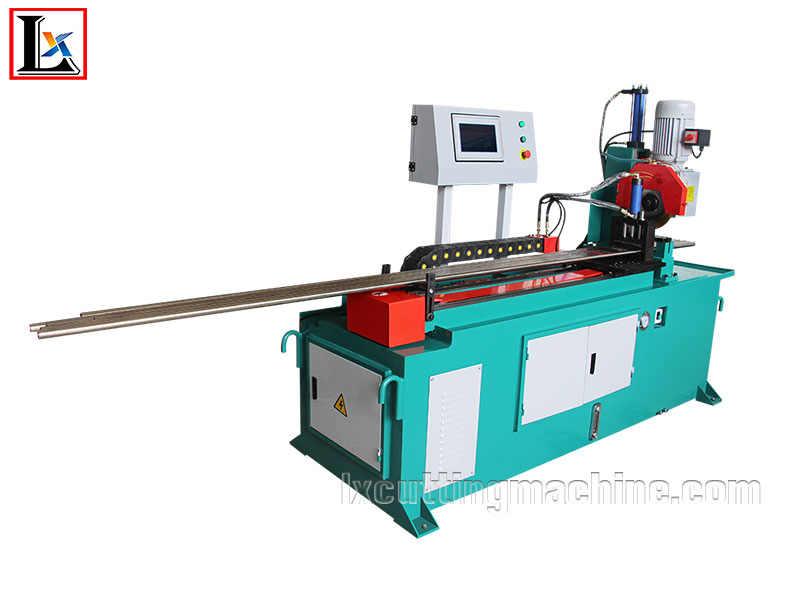

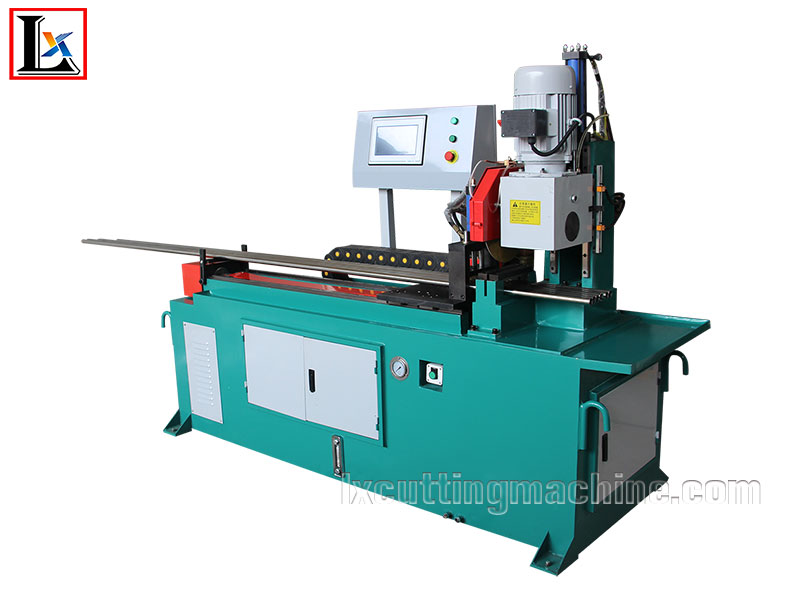

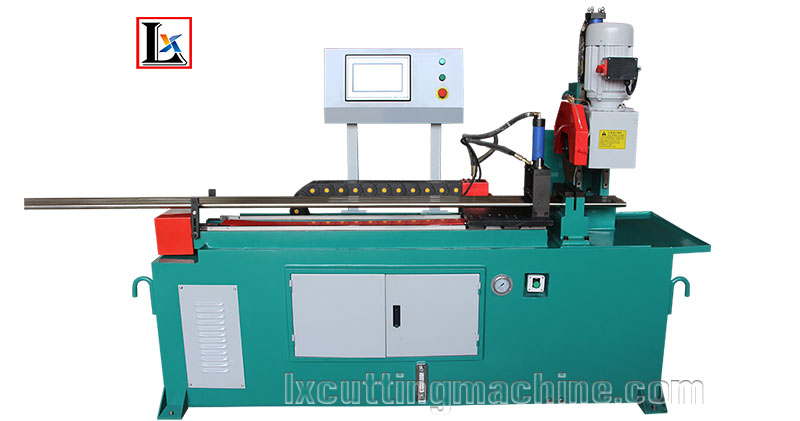

LX330CNC Circular Saw Machine

  • Açıklama
  • Parametre
  • Örnek
  • Video
  • FAQ


  1. Bundle cutting

  2. 2.Servo feeding

  3. .High accuracy

  4.No burr, no black color, no deformed

  5.Touch screen operate, PLC control

ModelLX-330CNC-H
Main Drive Motor(KM)380v 3.3/4.0KW 50HZ(Frequency)
Blade Speeds(RPM)25/50(Stainless steel)   60/120(Standard)
Saw Blade SizeDiameter(mm)HSSΦ250-φ300   Φ325(Special)
Bore (mm)Φ32
Pin Holes(mm)2×Φ11×PCD63
   Max. Clamping Capacity (mm)160(Customizable)
 Oil Pressure SystemOil pressure(kg/cm2)25-35
Hydraulic Oil storage capacity(L)90
Approx Net Weight(KG)600
Machine Approx Dimensions(L×W×H)(mm)2280×1620×680
